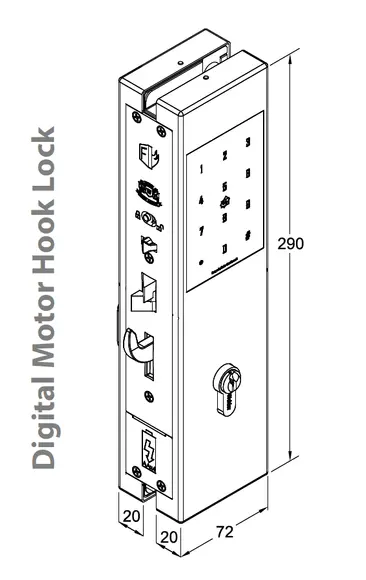

WDEL-9200-G

Digital Motorized Mechanical Auto Locking Hook Lock for Frameless Glass Door

Integrating advanced mechanical engineering with smart digital innovation, WEIDER Digital Motor Hook-Bolt Sliding Door Locks deliver elevated security for modern sliding doors.

Engineered with a mechanically auto-locking hook bolt, the lock secures itself instantly whenever the door closes—providing reliable protection without requiring user action. When access is granted, a precision motor drives the hook-bolt retraction, ensuring smooth, quiet, and effortless operation every time.

Designed with refined aesthetics and compact form, the lock seamlessly complements contemporary interiors while upgrading the functional performance of any sliding door system.

Enjoy true key-less convenience with multiple authentication options, including MIFARE smart card, touch keypad, and mechanical key override. Each method delivers fast, secure, and intuitive access, supported by WEIDER’s motorized locking technology.

Product Features & Benefits

• Slide & Go Auto-Locking – The door automatically locks the moment the sliding panel closes.
• Mechanically Auto-Locking Hook Bolt – No batteries needed for locking; the hook bolt engages mechanically for reliable security.
• Motorized Hook-Bolt Retraction – Upon valid authentication, a precision motor retracts the hook bolt for smooth and effortless opening.
• Designed Exclusively for Sliding Doors – Optimized mortise and hook-bolt geometry for anti-lift and anti-pry performance.
• Multiple Access Options – PIN Code, MIFARE Smart Card, and Mechanical Key Override.
• Dual Function Mode – Switch between Auto-Locking Mode and Passage Mode depending on your usage.
• Low Battery & Emergency Access – System provides a low-battery alert with backup key entry.
• Pure Mechanical Locking Feature – Motor is used only for unlocking; locking remains 100% mechanical for reliability.


Technical Details

Product Features
  • 304 grade stainless steel Latch Bolt, Hook Bolt, Anti-Thrust, Foreend and Striker

  • Auto Locking Mechanical Lock

  • For Frameless Glass Door

  • Passage & Auto Lock Dual Feature

  • For Glass Door : 8-12mm (other thickness upon request)

WDEL-9200-G offers advanced 4-in-1 access solution

4-in-1 solutions

  • Entry Options:

  • Smart Card (MIFARE)

  • PIN Code

  • Mechanical Key

  • Open Source Connection​ - can be connected to any 3rd party system or module

Product Specifications:

  • PIN Code: 6-12 digits with PIN Scramble of 24 digits

  • Colour: SSS

Function
Access Control Length
Access Control Width
Access Control Depth
Backset
Glass Thickness
Slide & Go
99mm
80mm
9.5+9mm = 18.5mm
35mm
8-12mm
Achievable Functions

Burglar resistant

burglar with restricted banner round icon_edited.jpg

Fire resistant

fire resistance round icon_edited.png
Type of door leaf

Frameless Glass Door

Type of frame

aluminium frame, blind frame, block frame, casing frame, steel frame

Note


Can be used along with Weider Sliding Sytem

Standard Sliding System

  • SL-6800

  • SL-8

  • SL-800

Soft Closing and Soft Opening Sliding System​

  • SC-6800

  • SC-60

  • SC-8030

​​

Semi Auto Sliding System

  • SA-SC-8030

  • SMA-SC-8030
